1969 Toyota Land Cruiser

Sale price: $15000,00 make an offer

Technical specifications

Manufacturer:Toyota
Model:Land Cruiser
Year:1969
Fuel Type:Gasoline
Color:Red
Mileage:0
Transmission:Automatic
Engine:383 Small Block Chevy
Number of Cylinders:8
Got questions?Ask the Seller
Current customer rating: current rating for this car (4)
based on 4 votes

Photos

Description

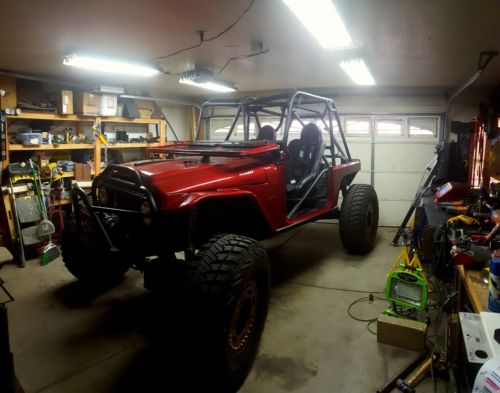

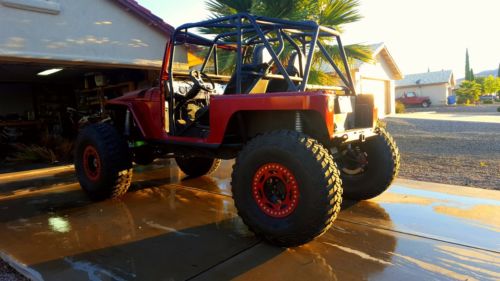

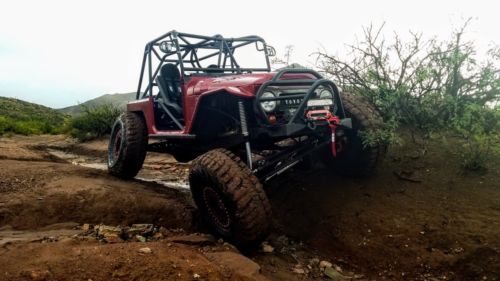

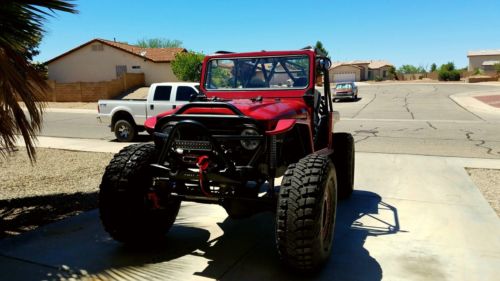

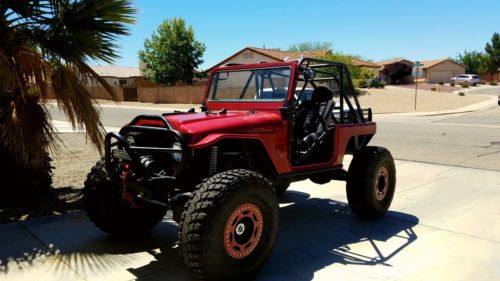

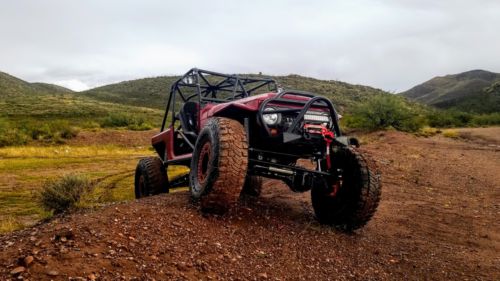

1969 Toyota FJ-40 Land Cruiser
Was stripped down to the bare frame and built from the ground up to be a capable rock crawler to handle any time of off-road terrain.

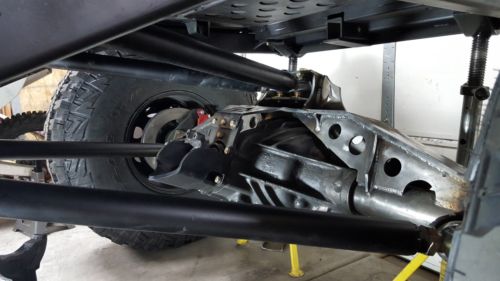

Front Ford HP Kingpin Dana 60
5:13 gears
Yukon Grizzly Locker
HD RuffStuff Diff cover
Yukon locking hubs
Disc brakes
Artec hysteer arms, spring less kingpin
2 Piece drive shaft with HighAngle Driveline carrier bearing, 1350 joints
Rear GM 14 Bolt - shaved
5:13 gears
Yukon Grizzly Locker
HD RuffStuff Diff cover, shaved diff
Disc brakes
HD CV shaft w/ 1410 at axle
Artec truss
3-Link front with 14" ORI Struts
4-Link rear with 14" ORI Struts
Stretched to 112" wheelbase
1.25" heim joints, 2" DOM links
SBC 383 Stroker with MSD Atomic EFI
AN Fuel fittings throughout
TH400 automatic transmission built by Jimmys4x4, w/ manual reverse valvebody, Winters shifter
Atlas II 4.1 transfercase, cable shifters
Oversized Transmission cooler - biggest one that could possiblely fit
Huge Aluminum Radiator w/ volvo/taurus electric fan and controller
P/S Cooler
West Texas Off-Road Redneck Ram power steering pump
PSC Hydraulic Assist Steering Ram
ARTEC Industries Hy-steer arms
HD steering links, mounted in double shear
4 wheel disc brakes, plumbed with left and right rear cutting brakes
GoatBuilt poly Fuel Cell with GM intake fuel pump/sending unit (18 gallon)

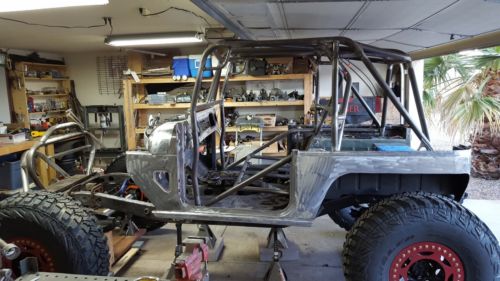

Front and Rear section of frame removed and built around linked suspension. Center section of original box frame is stitch welded. Completely boxed frame and cross-members.
Rear ¼ panels replaced with ⅜" BudBuilt weld-in replacements
Integrated 1/4 " wall square tubing rockers
Any rust was cut out and replaced with beefy steel. Nearly a full body off restoration. Body was completely stripped before paint.
Tube front fenders, raised for added clearance
Rear fender wells removed and re-welded up higher for added clearance
Bedlined interior for easy cleanup
Full 6 Point roll cage tied into frame using DOM tubing, with integrated seat mounts
PRP suspension racing seats, with PRP 5 point harnesses
SpeedHut gauges, including GPS speedometer
Warn 8k winch with remote switches in center console and synthetic line
Fully rewired, with all wire in protective fire protective loom
17" Steel beadlock wheels
40" Goodyear MTR's
All components are from RuffStuff, TMR Customs, Artec, Barnes 4wd, etc.
This is one of those builds where everything used was the best of the best, high end, proven components. No expense was spared.
Now that it's complete, I don't have the time to use it like it is intended and I'm looking for the next project.
It is titled and plated in AZ, street legal. It drives great on the road but it is a rock crawler first.
More pictures upon request. Feel free to send me any questions.
Seller is responsible for pickup or shipping.
This is a custom built off road machine and is NOT a show vehicle. It has been on many hardcore off road trails across the country and has the bumps and bruises to prove it. May or may not be street legal in your state. Sold as is. All sells are final. No warranty.
Vehicle is listed locally and seller has right to end auction early.
